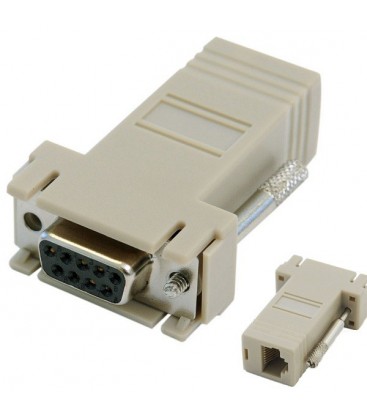

RJ45-DB9 (Female) Adapter for C2/L2-RJ45 Console Cable
RJ45 (female) to DB9 (female) adaptor block for use with the Redpark L2 or C2-RJ45 cable to convert it for use with DB-9 console ports. Use this adaptor for connecting to Cisco, Juniper, HP or other serial console ports that require a DB9 connection.
Related
More info
RJ45 (female) to DB9 (female) adaptor block for use with the Redpark C2-RJ45 cable to convert it for use with DB-9 console ports. Use this adaptor for connecting to Cisco, Juniper, HP etc network devices where the console port is a DB-9 Male connector.
Pin outs are as follows:
RJ-45 end DB-9 end
RTS 1 8 CTS
DTR 2 6 DSR
TXD 3 2 RXD
GND 4 5 GND
GND 5 5 GND
RXD 6 3 TXD
DSR 7 4 DTR
CTS 8 7 RTS
RJ45 (female) to DB9 (female) adaptor block for use with the Redpark L2 or C2-RJ45 cable to convert it for use with DB-9 console ports. Use this adaptor for connecting to Cisco, Juniper, HP or other serial console ports that require a DB9 connection.
Pin outs are as follows:
RJ-45 end DB-9 end
RTS 1 8 CTS
DTR 2 6 DSR
TXD 3 2 RXD
GND 4 5 GND
GND 5 5 GND
RXD 6 3 TXD
DSR 7 4 DTR
CTS 8 7 RTS
