RJ45-DB25 (Female) Adapter for L2/C2-RJ45 Console Cable

New product

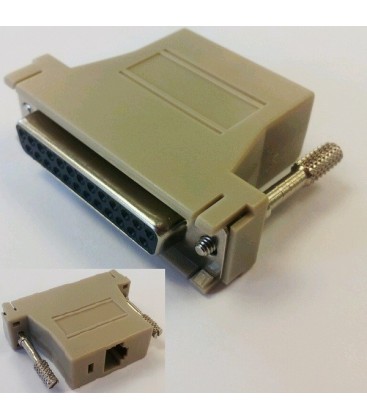

RJ45 (female) to DB25 (female) adaptor block for use with the Redpark L2-RJ45 or C2-RJ45 cable to convert it for use with DB-25 console ports. Use this adaptor for connecting to serial devices or other serial console ports that require a DB25 connection.

More details

US$4.00

131 Items
in stock

- +


More info
RJ45 (female) to DB9 (female) adaptor block for use with the Redpark C2-RJ45 cable to convert it for use with DB-9 console ports. Use this adaptor for connecting to Cisco, Juniper, HP etc network devices where the console port is a DB-9 Male connector.
Pin outs are as follows:
RJ-45 end DB-9 end
RTS 1 8 CTS
DTR 2 6 DSR
TXD 3 2 RXD
GND 4 5 GND
GND 5 5 GND
RXD 6 3 TXD
DSR 7 4 DTR
CTS 8 7 RTS

RJ45 (female) to DB25 (female) adaptor block for use with the Redpark L2-RJ45 or C2-RJ45 cable to convert it for use with DB-25 console ports. Use this adaptor for connecting to various RS232 serial ports with DB-25 presentation.

Pin outs are as follows:

RJ-45 Pins   DB-25 Pins
1               -> 4
2                -> 20
3                -> 2
4               -> 7
5               -> 7
6               -> 3
7               -> 6
8               -> 5




Data sheet
Fedex Weight0.025

Write a review

RJ45-DB25 (Female) Adapter for L2/C2-RJ45 Console Cable

RJ45 (female) to DB25 (female) adaptor block for use with the Redpark L2-RJ45 or C2-RJ45 cable to convert it for use with DB-25 console ports. Use this adaptor for connecting to serial devices or other serial console ports that require a DB25 connection.

Write a review


Comments(0)

No customer reviews for the moment.
