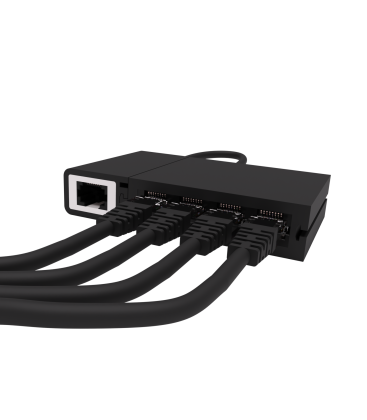

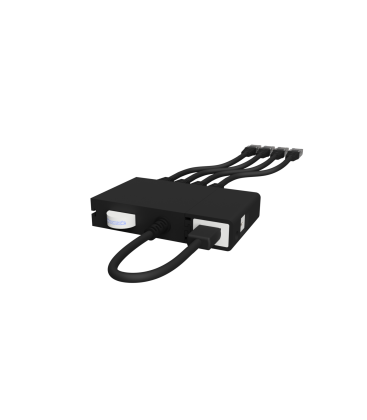

Airconsole TS 4 port

GCAC-TS-4

New product

The Airconsole 4 port Terminal (Device) Server for 24/7 in-rack operation. Built in WIFI, 10/100 Ethernet and Bluetooth provides access to serial ports via Web terminal, SSH, Telnet or virtual COM port mapping. Flexible configuration allows further 4 port cable kits to be added to expand to 8 or 12 ports. Powered via included Adaptor or optional PoE. Light weight and easy velcro mounting.

More details

US$159.00

1014 Items
Now in stock and shipping

- +


More info

The Airconsole 4 port Terminal (Device) Server designed for 24/7 in rack operation. Built in WIFI, 10/100 Ethernet and Bluetooth connectivity provides access to serial ports via Web terminal, SSH, Telnet or virtual COM port mapping. Flexible configuration allows further 4 port cable kits to be added to expand to 8 or 12 ports. Powered via USB Power (2.5m USB to microUSB cable and AC power adaptor included). Optional PoE kit (available September). Light weight and easy velcro mounting.

- Flexible

  • Expand serial ports via clip-on 4 Port Cable Kits modules, Built in WIFI and Wired connectivity
  • One small package supports both Wired and WIFI (802.11n) connectivity
  • Start with 4 ports and add upto 12 ports through slide on 4 port cable modules
  • Cisco console pinout but DB9 and DB25 adaptors also available
  • IP and/or Bluetooth connectivity (Note Bluetooth allows single port access at a time)
 - Small Size
  • Zero U, fits into your existing overcrowded racks
  • Light enough to attach with Velcro anywhere and everywhere
  • included 1.8m intra cabinet cabling using light weight cables
  • External 5V power options - power from anything in rack or use external USB power adaptor, or PoE
 - Enterprise ready - Yet works with Tablets and Smartphones
  • Full SNMP Monitoring
  • Firewall friendly - full user control of the TCP ports used by various features
  • SSH security for session and device access
  • Integrates with external Radius or TACACS Authentication servers
  • Works natively with PC, Mac, Android and iOS devices
  • Built in Web Terminal - direct terminal access with just a web browser and no plugins required
  • Integrates with Airconsole Enterprise Server (Cloud or User Self Hosted)
 - Cloud Connected
  • Auto-tunnelled and concurrent connection to Cloud (Airconsole Enterprise Server)
  • Concurrently can support a local serial port connection and tunnel same serial port to cloud service for remote access
  • Supports Remote NOC operations - Aggregate thousands of serial ports into a single Airconsole Enterprise Server
  • Included licenses for Airconsole Enterprise Server option - nothing more to buy to manage thousands of units
 - Low Cost - from just $21/port
  • Compare to Digi, Perle, Moxa, Opengear pricing typically at $50-100+ per port
  • Other Centralised Management / Aggregation Server typically $$$ thousands extra (if offered at all)
  • Low TCO via template-able configuration, OTA firmware upgrades, simple user interface, built in web terminal
Whats in the Box

- Airconsole TS head unit in Cradle

- 4 port Serial port module with Rj45 Sockets (slides onto head unit)

- 4 x lightweight 1.8m console cables (RJ45 Male plugs each end)

- Airconsole Bluetooth USB Adaptor (installs in USB female port of 4 port Serial Cable)

- USB to MicroUSB power cable 2.5m.

- Power Adaptor 110-240V AC to 5V 1A DC USB out.

- Client License card for redemption of Airconsole Enterprise Server

Other Common Questions:


It Seems very in-expensive - How Reliable is Airconsole TS?
  • Design based on industry proven and mass produced hardware (low failure rates, millions of units produced and sold)
  • Internal QA and testing of every unit before shipping
  • Firmware developed and refined over 4 years since 2011
  • We have low overheads - We are New Zealand based and our sales channel (at present) is online sales only - 90% of our staff are developers!
  • Airconsole TS comes with a full 12 month warranty - if it breaks no questions asked we will refund or replace at your option.
  • 3 month No Questions Asked return policy - try it out first and return it if doesn't meet your expectations. Customer will need to pay for return shipping.
What features are missing compared to other Device servers?
  • Airconsole TS is designed to do everything you generally need for remote access to field equipment serial console ports and not complicated by anything you don’t. However Airconsole TS does not have a few of the esoteric features that other Device servers have - remote serial port printing mode or behave like a terminal client itself rather than reverse terminal server.
  • Cloudstore however is constantly developing new features based on customer feedback and firmware updates are generally free
  • Airconsole TS has connectivity features that very few competing device servers have - for example Wired Ethernet, WIFI and Bluetooth connectivity all within a single platform.
Does Airconsole TS use proprietary features that locks us in for interoperability?
  • Airconsole TS Uses industry standard protocols - SNMP, Radius, RFC2177, SSH,
  • Cloud connectivity and Serial over Bluetooth Low Energy uses some of our proprietary tunnelling and protocols however these features are not essential for operation as a basic terminal server.
  • We (Cloudstore) have been established since 2007 as makers of the Get Console Serial terminal App (2010) and makers of the very popular Airconsole field service serial adaptor
Is it difficult to setup
  • Easy web based configuration utility + or use our Airconsole QuickStart App (Android and iOS)
  • Defaults out of the box with the most common settings
  • Easy firmware upgrade process
  • Fits into existing Enterprise monitoring and Access Management tools

Data sheet
Package Weight:0.22 kg
Part Number:GCAC-TS-4
Cable Length:1.8m x 4 light weight serial console cables (RJ45 male)
Regulatory Approval:CE, FCC, RoHS, UL Listed
Connectors:4 x Serial (RJ45 male presentation), 1 x Ethernet, 1 x WIFI, 1 Spare USB slot for installing 1 x USB-Bluetooth radio.
Brand:Airconsole
Serial cable assembly length1.8m x 4
Power adapter cable2.5m microUSB to USB
Serial Connector:4 x RS232
Serial Interface:RJ45 - Pinout: 1:RTS 2: DTR 3: TXD 4: GND 5: GND 6: RXD 7: DSR 8: CTS
Power Connector:microUSB 5V
Power Adapter Details:1A 5V power adaptor
Warranty:12 months
Fedex Weight0.22
Part Dimensions0.093 kg net weight excluding cables. 102x63x22mm

Write a review

Airconsole TS 4 port

The Airconsole 4 port Terminal (Device) Server for 24/7 in-rack operation. Built in WIFI, 10/100 Ethernet and Bluetooth provides access to serial ports via Web terminal, SSH, Telnet or virtual COM port mapping. Flexible configuration allows further 4 port cable kits to be added to expand to 8 or 12 ports. Powered via included Adaptor or optional PoE. Light weight and easy velcro mounting.

Write a review


Comments(0)

No customer reviews for the moment.


Documentation

QuickStart Guide at: Quick Start Guide

Full User Manual at: Full User Guide
