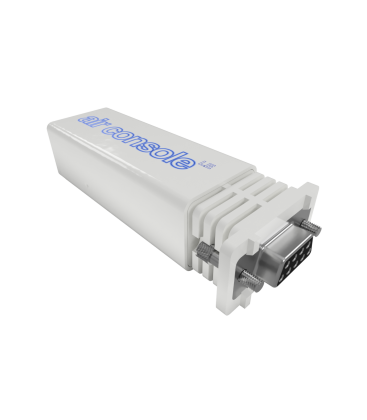

Airconsole LE RJ45

GCAC2-LE

New product

Serial over Bluetooth Low Energy

Airconsole LE is our latest wireless RS232 serial adapter. Offering fast and simple serial connectivity to practically any RS232 serial device from any device that supports Bluetooth Low Energy, with the worlds longest lasting battery and broadest range of physical port presentations. See notes for Full Details

More details

US$59.00

US$59.00 per 1
1073 Items
Shipping 20 March 2018 or earlier

- +


More info

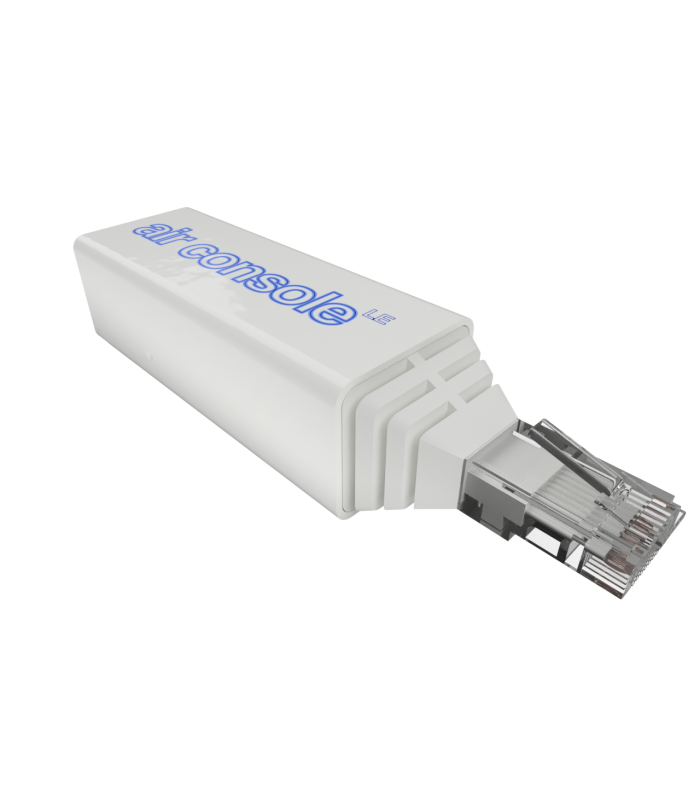

This SKU for RJ45 Serial connector - Single Unit

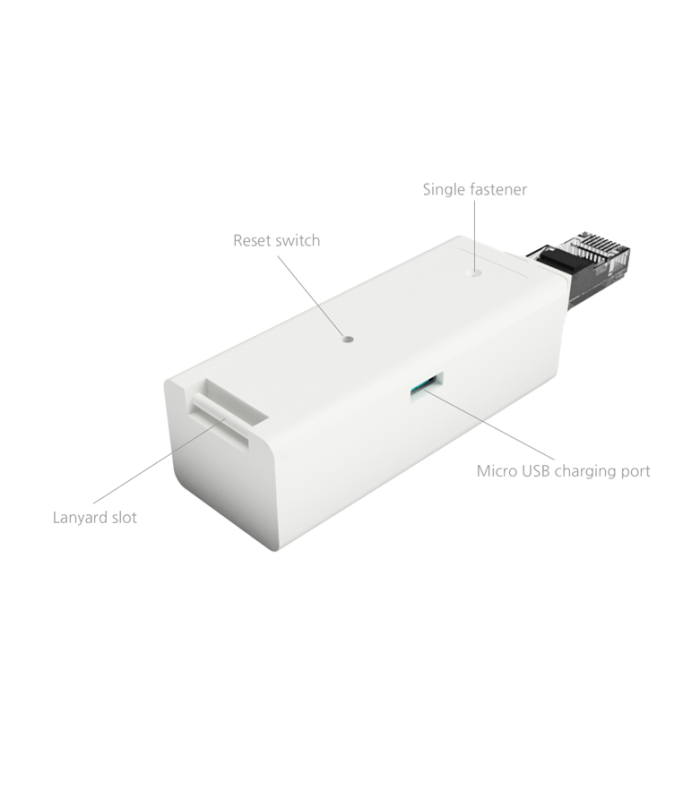

Airconsole LE is the always on Serial adaptor that works via Bluetooth Low Energy. Equipped with a powerful internal LiPo battery which lasts for upto 6 months between charges.

Airconsole LE gets you connected to the ubiquitous RS232 serial port on networking, industrial and other field devices quickly from practically any type of host terminal that supports Bluetooth LE (including the free full featured terminals made by Get Console)

Features:

- Always on for instant discovery and connection. Connects within 2 seconds.

- works with our free, full featured iOS and Android terminal applications*, or from any terminal application on Windows* (ie Putty, SecureCRT), OSX (ie Terminal.app) or Linux via our free drivers. Drivers will present Airconsole LE serial port as a virtual COM port (tty) directly connected to OS.

- Upto 6 months battery life while waiting for connection. Over 12+ continuous hours of serial data transmission on a single charge. Leave Airconsole LE plugged in and will be ready next time console access is needed.

- Easy configuration - change common settings such as baud rate, flow control and other settings directly from Terminal apps on iOS or Android, or use our free Airconsole Quickstart App to make more complex configuration setups. Quickstart allows for configuration over the air

 - Built in Security options at both the Bluetooth layer and for connecting to serial ports or to make configuration changes. Allows Airconsole LE to be left plugged in to industrial device console ports, but in-accessable unless the bluetooth PIN and/or serial port password is known.

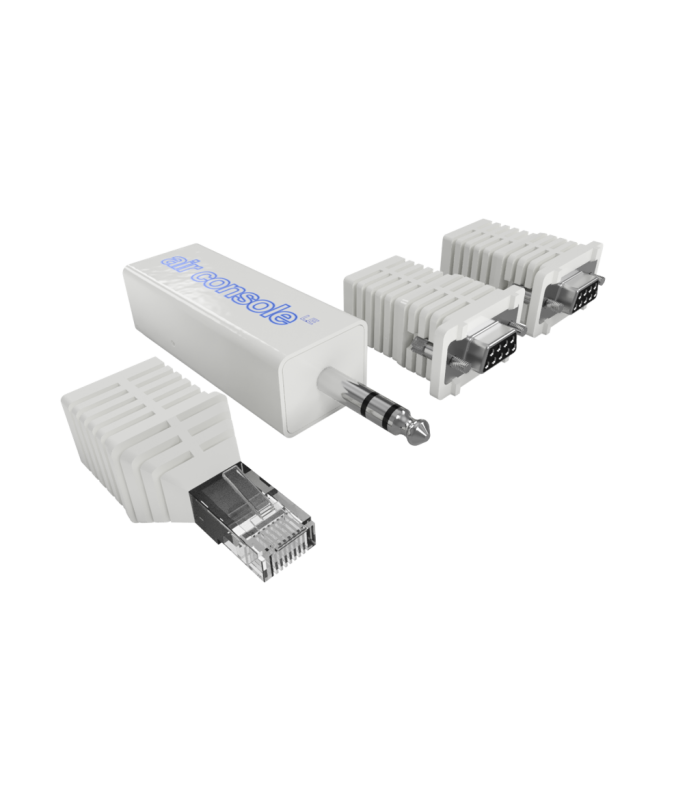

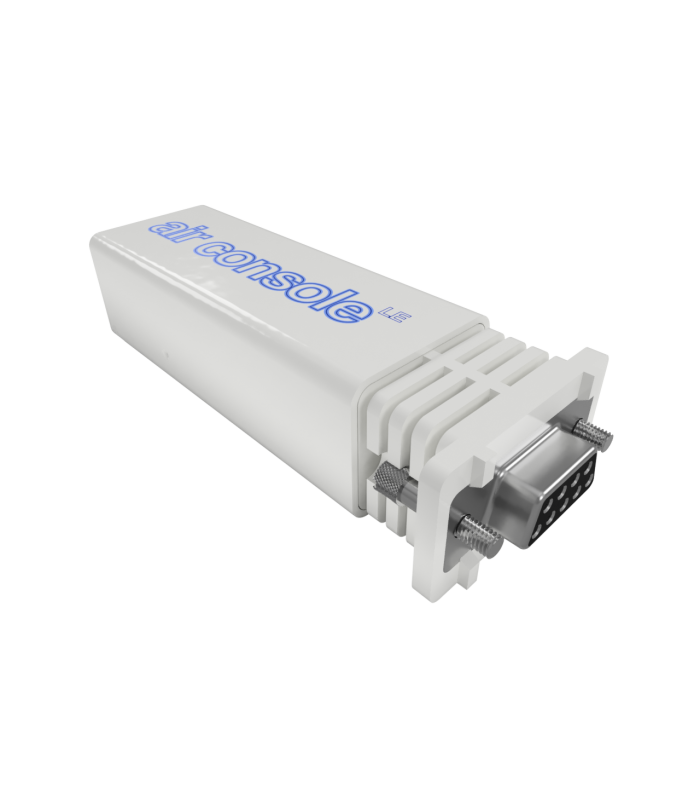

- Connectivity options - swap out the RJ45 Serial connector module for DB9 Standard, DB9 Null (reverse pinout) or DEX. Additional connector modules are sold separately for only $15.00 each. Alternatively use lower cost plug-on dongles to adapt to your RS232 presentation required.

- Hibernation mode for travelling on old aeroplanes or in locations where Bluetooth not allowed.

- Robust connectors and external shell. Withstands drops from 1m

- Lanyard pin for attaching to belts or keys (Lanyard strap not included)

* Free Android Terminal App for release May 2018. See support.smartalock.com for announcement and download details.

* Windows COM port driver for release April 2018, supports Windows 10+


Data sheet
Package Height:55mm
Package Width:60mm
Package Depth:118mm
Package Weight:0.1 kg
Part Number:GCAC2-LE
Cable Length:30cm (micro USB charging)
Regulatory Approval:FCC / CE
Connectors:RJ45 Serial
Brand:Airconsole
Serial Connector:RS232 RJ45 Cisco Pinout
Warranty:12 Months return to base
Contents:Airconsole LE Unit, Reset Tool, Charging Cable, Quickstart Guide
Fedex Weight0.1
Part Dimensions105 x 24 x 18mm

Write a review

Airconsole LE RJ45

Serial over Bluetooth Low Energy

Airconsole LE is our latest wireless RS232 serial adapter. Offering fast and simple serial connectivity to practically any RS232 serial device from any device that supports Bluetooth Low Energy, with the worlds longest lasting battery and broadest range of physical port presentations. See notes for Full Details

Write a review


Comments(0)

No customer reviews for the moment.

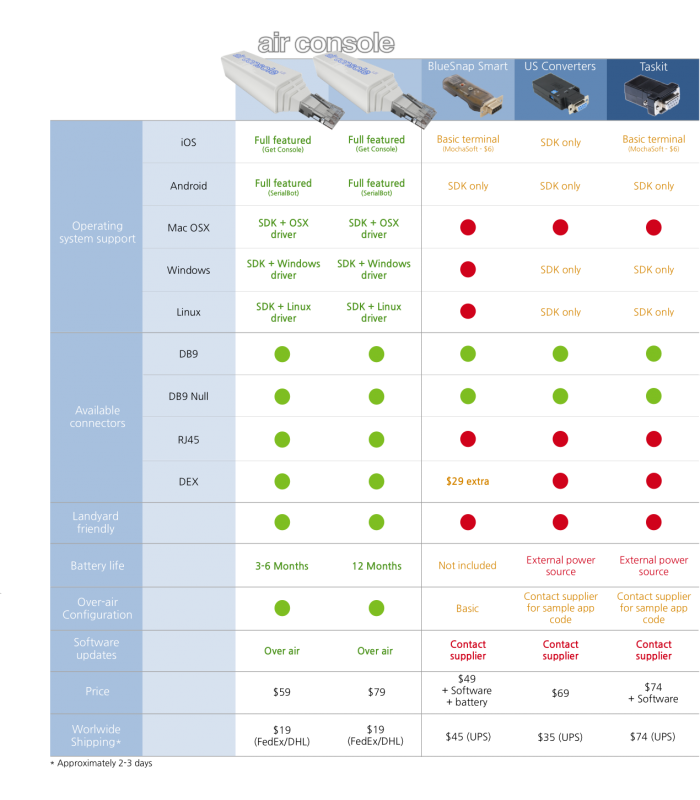

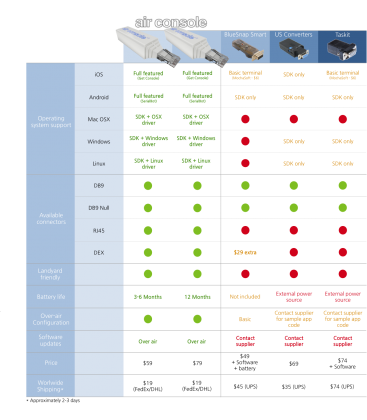

Comparison Chart

Compare the different types of Airconsoles in the table below

Comparison Chart including LE
