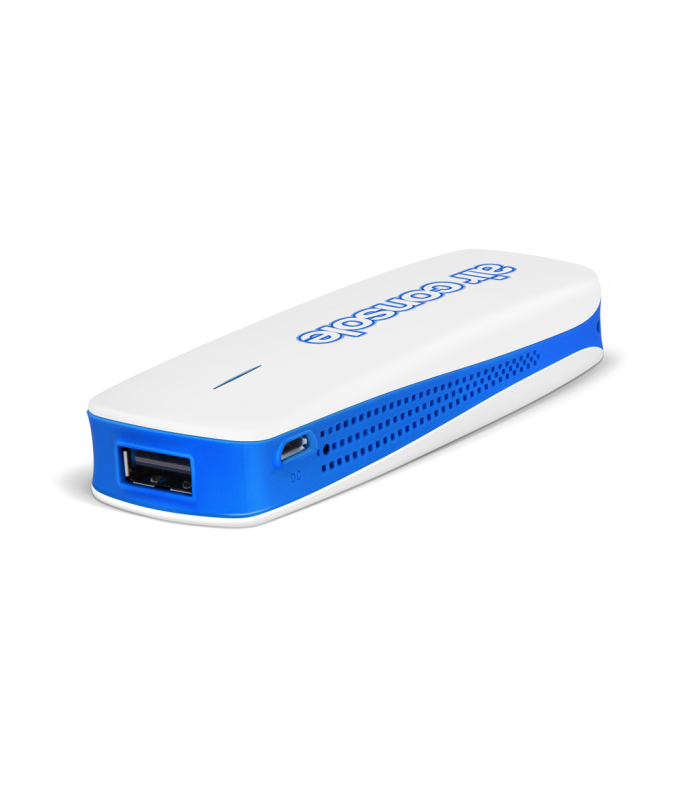

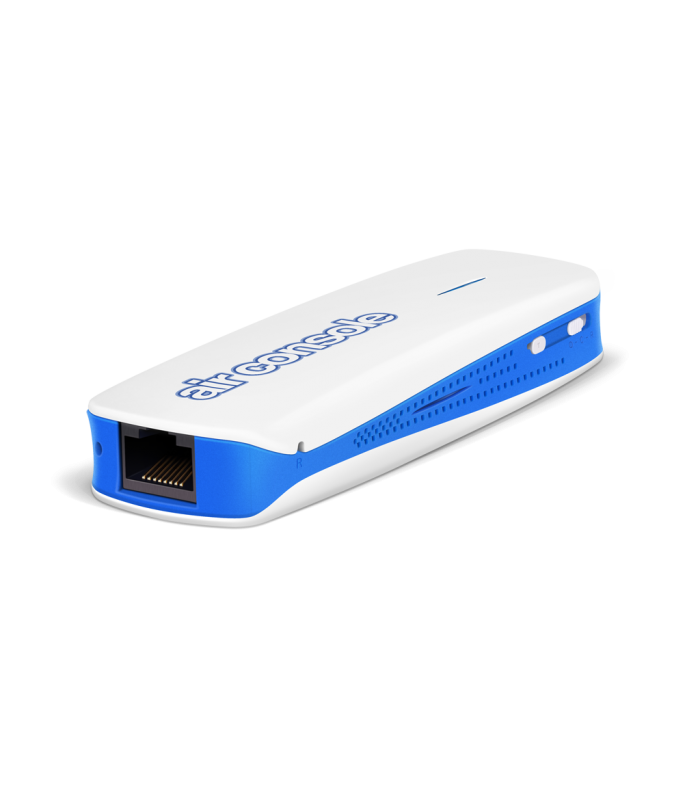

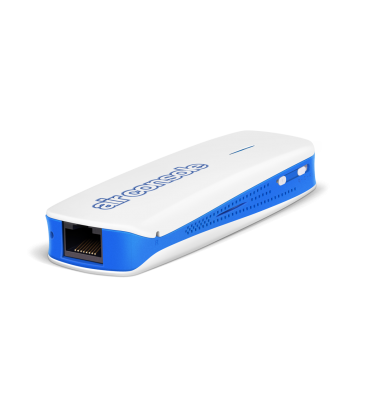

Airconsole 2.0 for Alere

New product

FREE FEDEX SHIPPING. Airconsole 2.0 Alere Adaptor is a specific Airconsole model for connecting iOS devices to Alere Diagnostic equipment. Based on our most popular Serial adaptor - with WIFI and Ethernet in a single package. Use with iPhone, iPad, PC, Mac and Android. Requires Alere cable available from Alere.

More details

US$82.00

972 Items

- +


More info

************ FREE WORLD WIDE EXPRESS SHIPPING VIA FEDEX on ALL ALERE COMPATIBLE AIRCONSOLE 2.0 ADAPTORS *****************



Airconsole 2.0 Alere Adaptor is a specific model for connecting iOS devices to Alere Diagnostic equipment. Based on our most popular Serial adaptor - with WIFI and Bluetooth Low Energy in a single package. The Alere version includes everything needed to connect to the DB9 Serial Port on Alere Diagnostic Equipment. Our most cost effective offering - Use Airconsole Pro with iPhone, iPad, PC, Mac and Android.

Access Serial Ports over Wifi

Airconsole allows for easy wireless access to wired RS232 serial ports via a transparent standards based serial-over-wifi protocol. Full RS232 connectivity is supported including baud rates to 9.6k - 230k, 7/8 Data Bits, Odd/Even/No Parity, 1/2 stop bits, CTS/RTS and DSR/DTR hardware flow control. When used with Get Console, or via our supplied drivers it appears as a directly connected serial port to the terminal application.

Quick and Easy Auto Setup for Mobile Serial Communications

Airconsole is designed to work seamlessly with our iOS or Android applications (Get Console, RapidSSH or SerialBot). Just enable bluetooth, or for higher speeds simply join the Airconsole WIFI network and launch the app - the serial connections will use the Airconsole as if using a cable - Baud rates, flow control, and other serial settings are transparently applied to the adaptors serial port immediately on connection.

Full RS232 connectivity

Full flow control, baud rates upto 115200, all pins connected and controllable via the Get Console application. Airconsole puts out true RS232 (+/-5v) voltage levels. The supplied RJ45 cable can easily be adapted to DB9, DB25 or DEX presentation via dongles available here in this webshop.

Bridge Wireless to Wired Ethernet

Airconsole also functions as a wired to wireless Ethernet bridge, meaning your iPad, iPhone, Android, Mac or PC can connect to the wired LAN transparently. When used with Get Console it therefore means equipment that is accessed via an Ethernet rather than Serial console port can be simultaneously controlled. For example, use Get Console's built in TFTP server to upload new files to a devices Ethernet management port while controlling it from its Serial console port.

Cloud Connected

Airconsole has built in support for sharing its serial port with remote web users via the cloud. Using our low cost Get Console Private Server (licenses included in Pro/XL kits), Aggregate many remote serial devices into an always-on cloud based serial terminal server - a single web interface can provide remote console access to any and all manner of industrial, networking, home automation equipment via their RS232 management ports.

Integrated Long-Life Battery, and easy USB charging.

Airconsole has a built in 1800Wh Lithum Ion battery which lasts for around 4 hours of continuous use. However switched off, the battery holds usable charge for at least 14 days, meaning its ready to work when you need it. In addition, the seperate micro-USB charging port can also allow for external power operation using the supplied micro-USB charging cable - simply find a spare USB port in the datacentre and power up. Full charging takes just 45 minutes.

Fully Customizable and Secure

Airconsole has a built in webpage for changing the default configuration - allowing for encrypted or open wifi, enabling routing, running with static rather than DHCP dynamic IP addressing and upgrading the firmware to the latest features.

Many Other Advanced Features

- Machine-to-Machine mode: Connect serial devices back to back over an IP WAN using 2 Airconsole units

- AP Client: Airconsole can join existing WIFI networks while concurrently operating its own WIFI network, and route between them (with or without NAT)

- Full IOS and Websockets SDK: Developers can build RS232 serial support into their own applications quickly and easily with our

- Built in web based terminal: no terminal app? no problem - access serial console ports from any modern web browser directly

Package Contents:

1 x Airconsole Adaptor

1 x Micro USB Charging Cable

1 x Quickstart Guide

Technical Specification

Serial

Serial Baud rates (using either WIFI or Ethernet) from 1200 through 115200 (upto 230k supported in Mac/PC)

Hardware Flow Control (RTS/CTS or DSR/DTR)

Standard Serial over RJ45 pinout (for direct connection to Cisco console ports)

Ethernet

802.11N Wireless at upto 150Mbps

10/100 Ethernet with Auto-MDIX

Battery

1800Wh LIon Battery

14 days standby

Upto 4 hours operation from full battery

*Support Information

Get Console directly supports Airconsole use with our Applications (Get Console, RapidSSH and Private Server). For support with Alere Diagnostic equipment and Apps please refer to your Alere support resources available at Alere.com


Data sheet
Part Number:GCAC2-ALERE-S1
Cable Length:30cm
Regulatory Approval:CE, FCC, ROHS
Connectors:USB, Serial, WIFI, Ethernet
Brand:Airconsole
Serial cable assembly length30cm
Power cable assemblyMicroUSB
Serial Connector:RJ45 and DB9
Serial Interface:DB9 RS232
Power Connector:MicroUSB
Power Adapter Details:Not Included - USB Power
Warranty:12 Months
Contents:Airconsole Adaptor, Alere RJ45-DB9 adaptor, MicroUSB Charging, Bluetooth Radio, USB-RJ45 Serial Cable, Quickstart Guide
Fedex Weight0.15

Write a review

Airconsole 2.0 for Alere

FREE FEDEX SHIPPING. Airconsole 2.0 Alere Adaptor is a specific Airconsole model for connecting iOS devices to Alere Diagnostic equipment. Based on our most popular Serial adaptor - with WIFI and Ethernet in a single package. Use with iPhone, iPad, PC, Mac and Android. Requires Alere cable available from Alere.

Write a review


Comments(0)

No customer reviews for the moment.


Comparison Chart

Compare the different types of Airconsoles in the table below

airconsole comparison chart
