ELMO GMAS usb-serial drivers.

[Flange_Gasket]

The new AMX NX series controllers have a USB program port that installs on Windows as a ELMO GMAS driver. Is there any support for this in Airconsole? I have tried but I can't get it to work.

[daniel]

The port is most likely a CDC-ACM port with a custom VID/PID. In which case it won't be picked up by the Airconsole

Is it possible for you to advise the reported VID/PID? If you connect it to the Airconsole USB port, log in via telnet and issue the following command:

Code: Select all

cat /proc/bus/usb/devices

You can then post it here or email to support@get-console.com and we will see if we can add it into the next firmware release.

[Flange_Gasket]

The port is most likely a CDC-ACM port with a custom VID/PID. In which case it won't be picked up by the Airconsole

Is it possible for you to advise the reported VID/PID? If you connect it to the Airconsole USB port, log in via telnet and issue the following command:

Code: Select all

cat /proc/bus/usb/devices

You can then post it here or email to support@get-console.com and we will see if we can add it into the next firmware release.

Hi Daniel,

Thanks for the reply.
Vendor = 0525
Product ID = a4a7

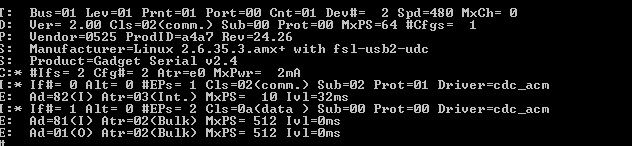

I've attached a screenshot of it too.

Regards
Mark.
